DODGE V10 -  Engine Build Gallery

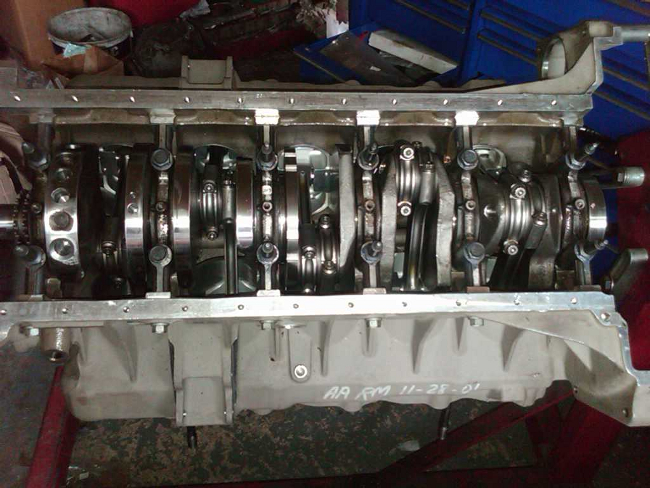

Viper bottom end
Bottom end of modified engine. Note the cleanliness of all parts

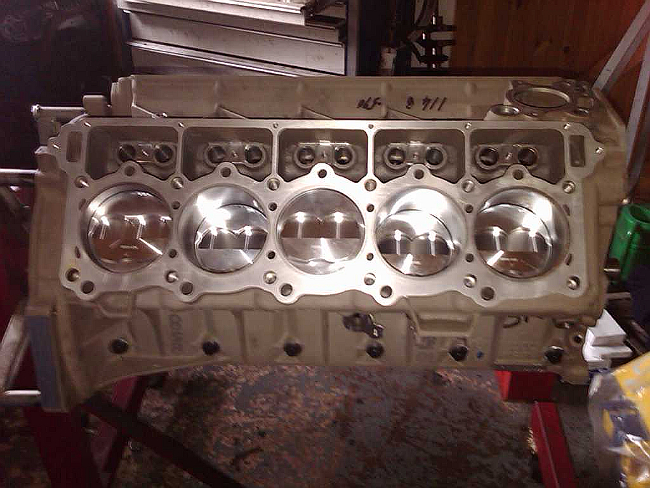

Dodge V10 block, top view
Top end view of Viper V10 block. Note the pockets machined in the top of the pistons to accommodate the valve heads at full lift.

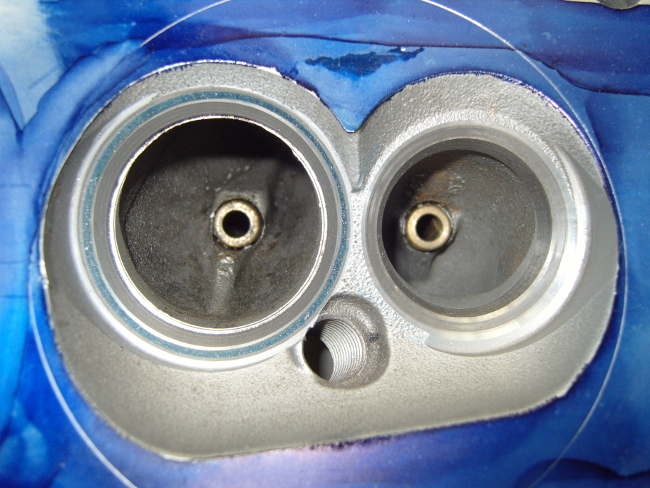

Ports before porting
Viper heads - intake and exhaust tracts before final porting for higher gas flow...

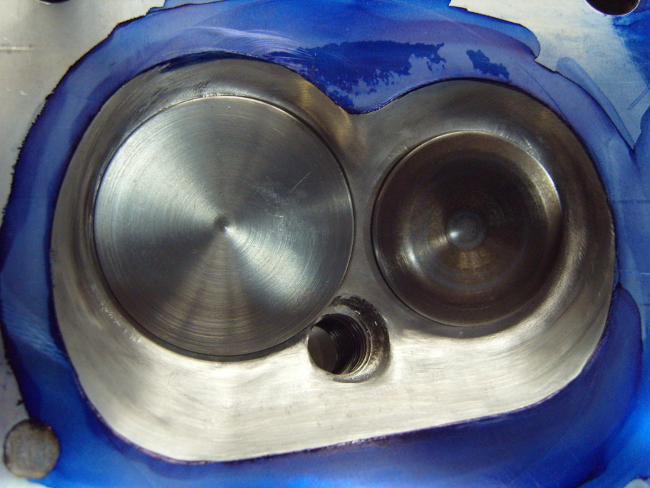

Chamber with valved installed
...and with valves inserted and final shaping and polishing of combustion chamber completed.

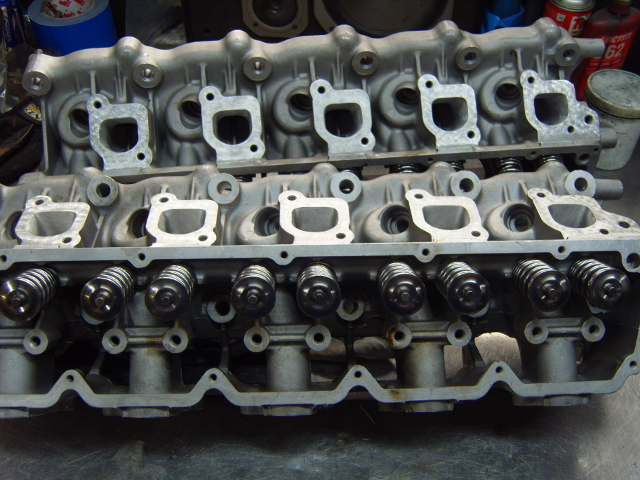

viper head exhaust side
Cylinder heads complete and assembled, note the porting on the exhaust outlets. These will be matched to the exhaist manifold - headers - so as to give a step-less transition, and thus minimal disturbance to the  exhaust gas flow.




To be continued....
